Laser Blade Holder Assembly Kit

Laser Blade Holder Assembly Kit

Transform your laser cutting results with a blade-style support system engineered for cleaner cuts, improved airflow, and consistent performance.

Ideal for users looking to reduce backside scorching and improve overall cut consistency without modifying their machine.

Honeycomb beds create unnecessary contact points that trap heat and debris, leading to backside scorching and inconsistent results. A blade-style system minimizes contact, allowing air to flow freely for a cleaner, more consistent cut.

Why switch from a honeycomb bed?

• Cleaner cuts with reduced backside scorching
• Improved airflow for more efficient cutting
• Minimal contact for a smoother finished surface
• Less debris buildup for easier cleanup

Built for strength and reliability

Each holder is manufactured from UL94 V-0 flame-retardant polycarbonate using a high-density 100% infill process. The result is a rigid, heat-resistant structure designed for long-term reliability.

Designed for precision

• Precision-cut blades ensure consistent spacing and alignment
• Rigid structure maintains stability during operation

Specifications

• Holder Length: Approximately 500mm
• Blade Length: 345mm

Materials

• Holder: UL94 V-0 flame-retardant polycarbonate (high heat resistance)
• Blades: Anodized aluminum
• Rail/Extrusion: Anodized aluminum
• Magnets: Neodymium

Includes components for two complete holder assemblies

Compatibility

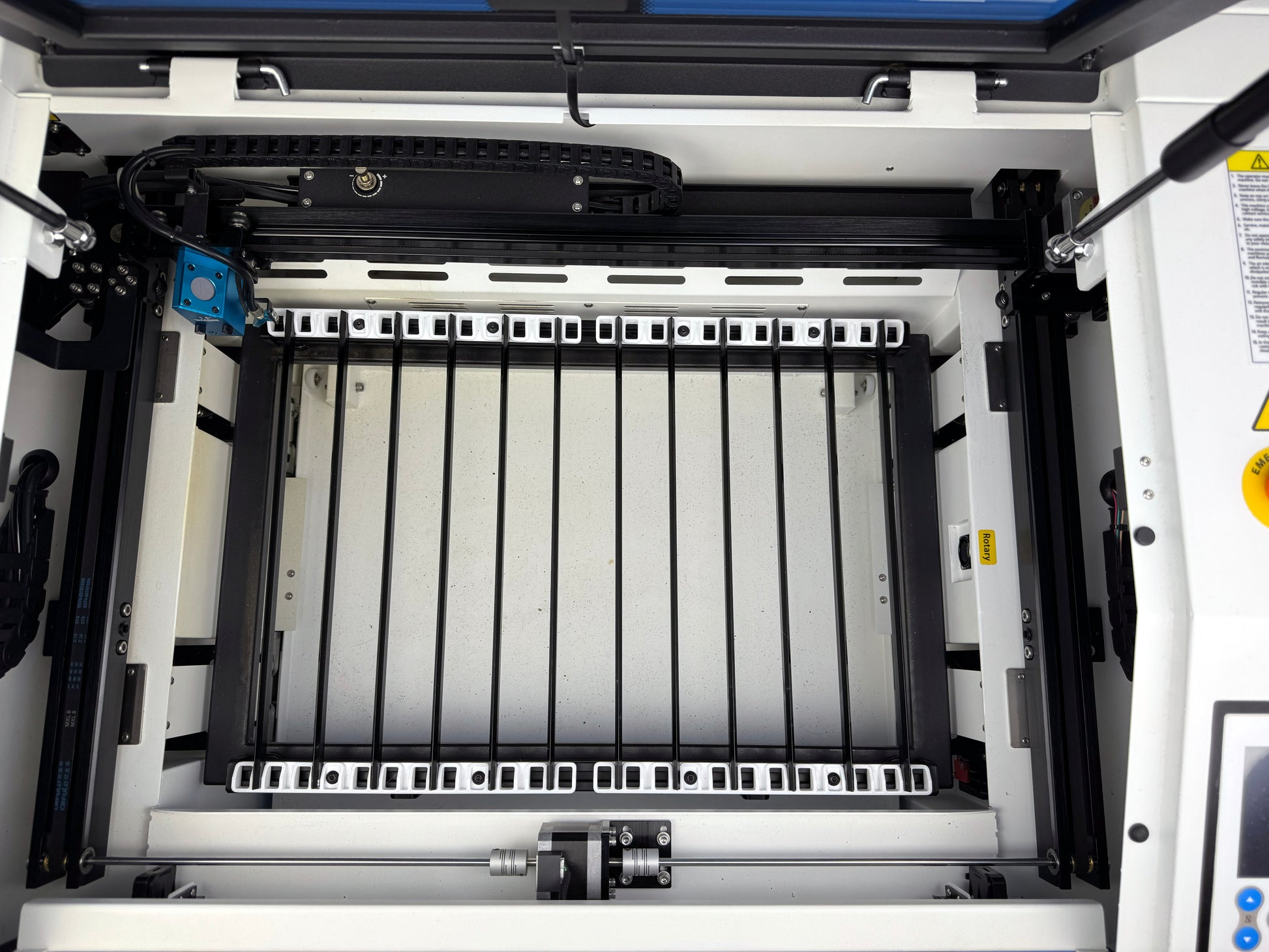

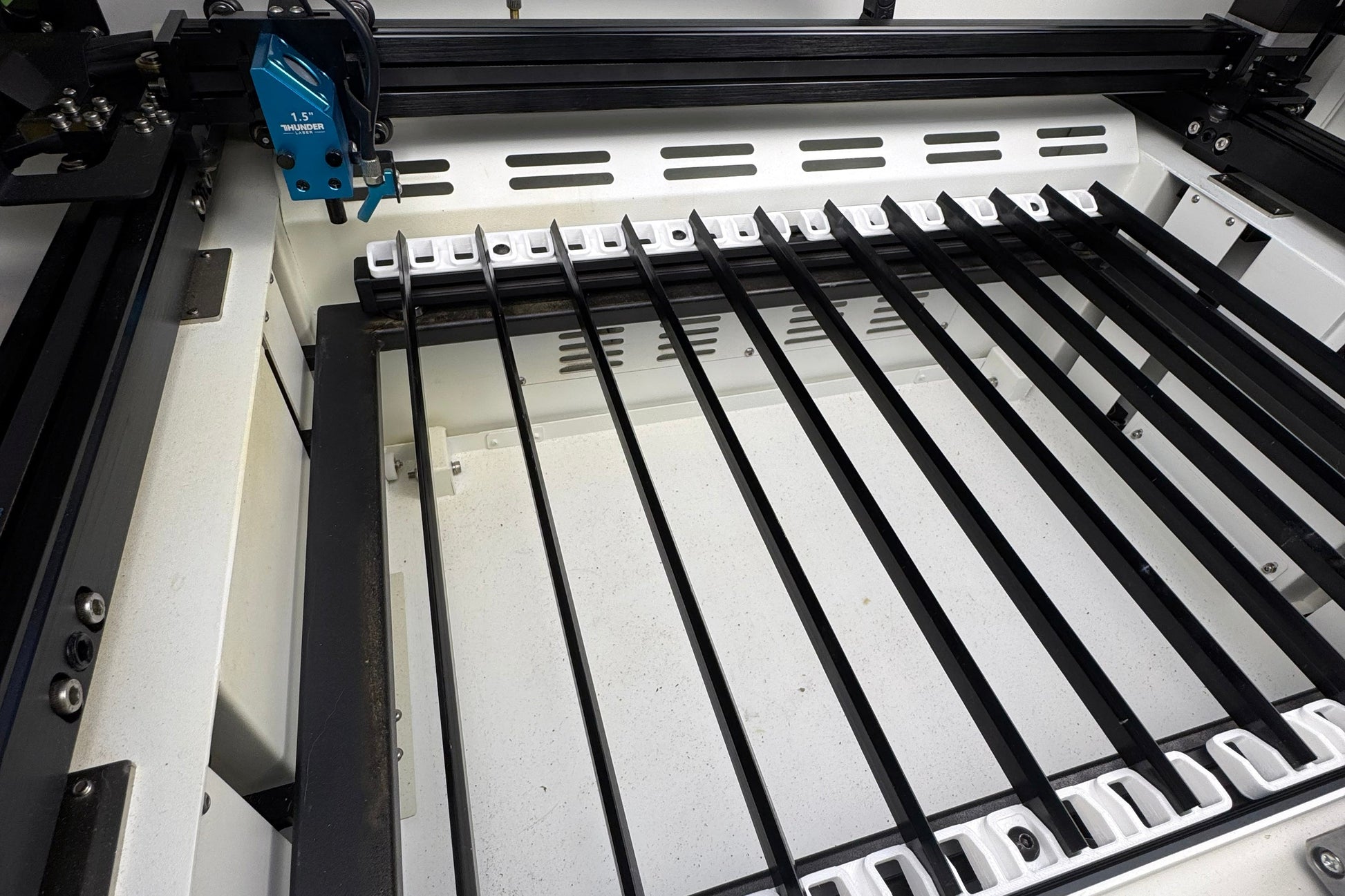

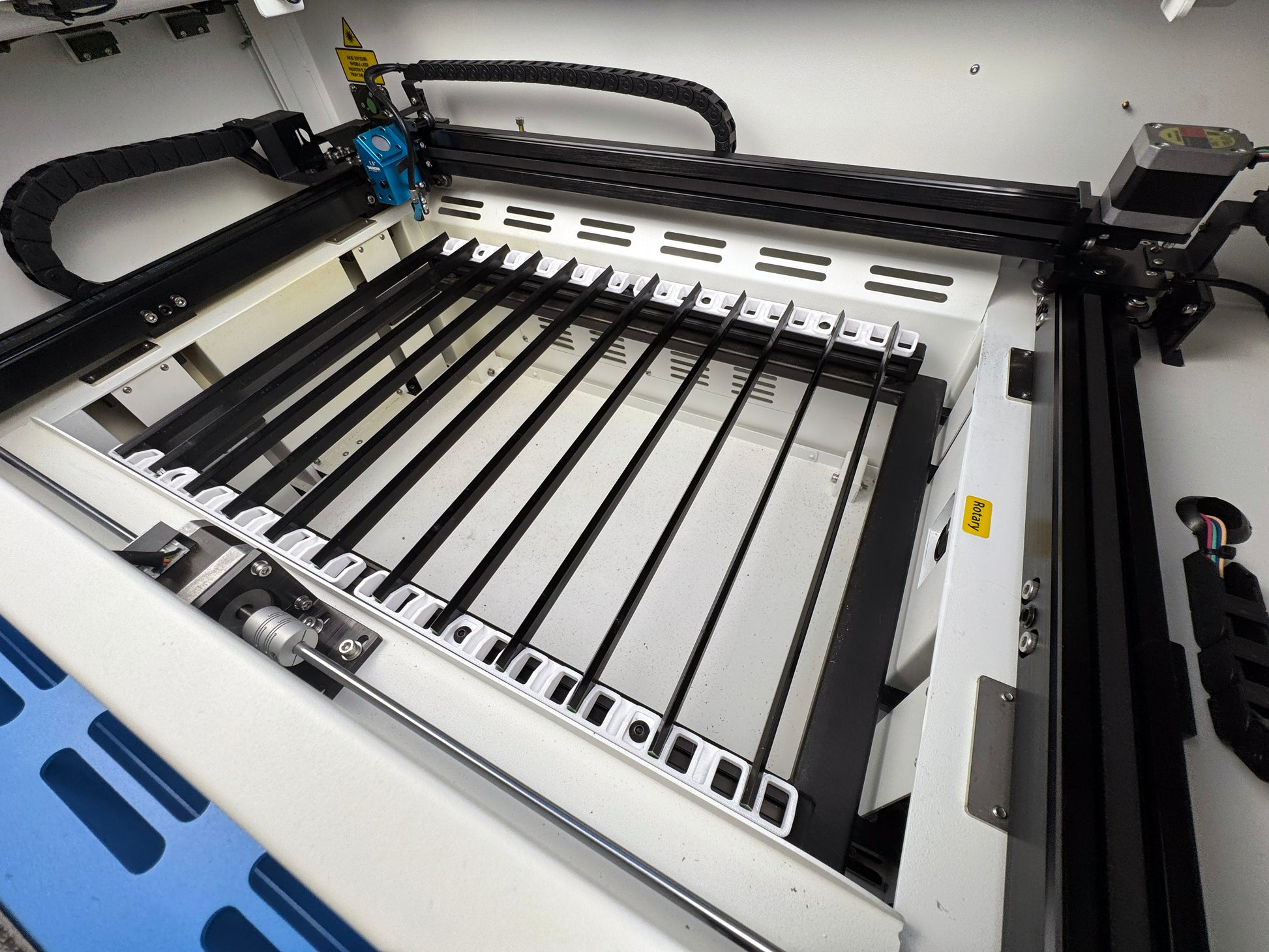

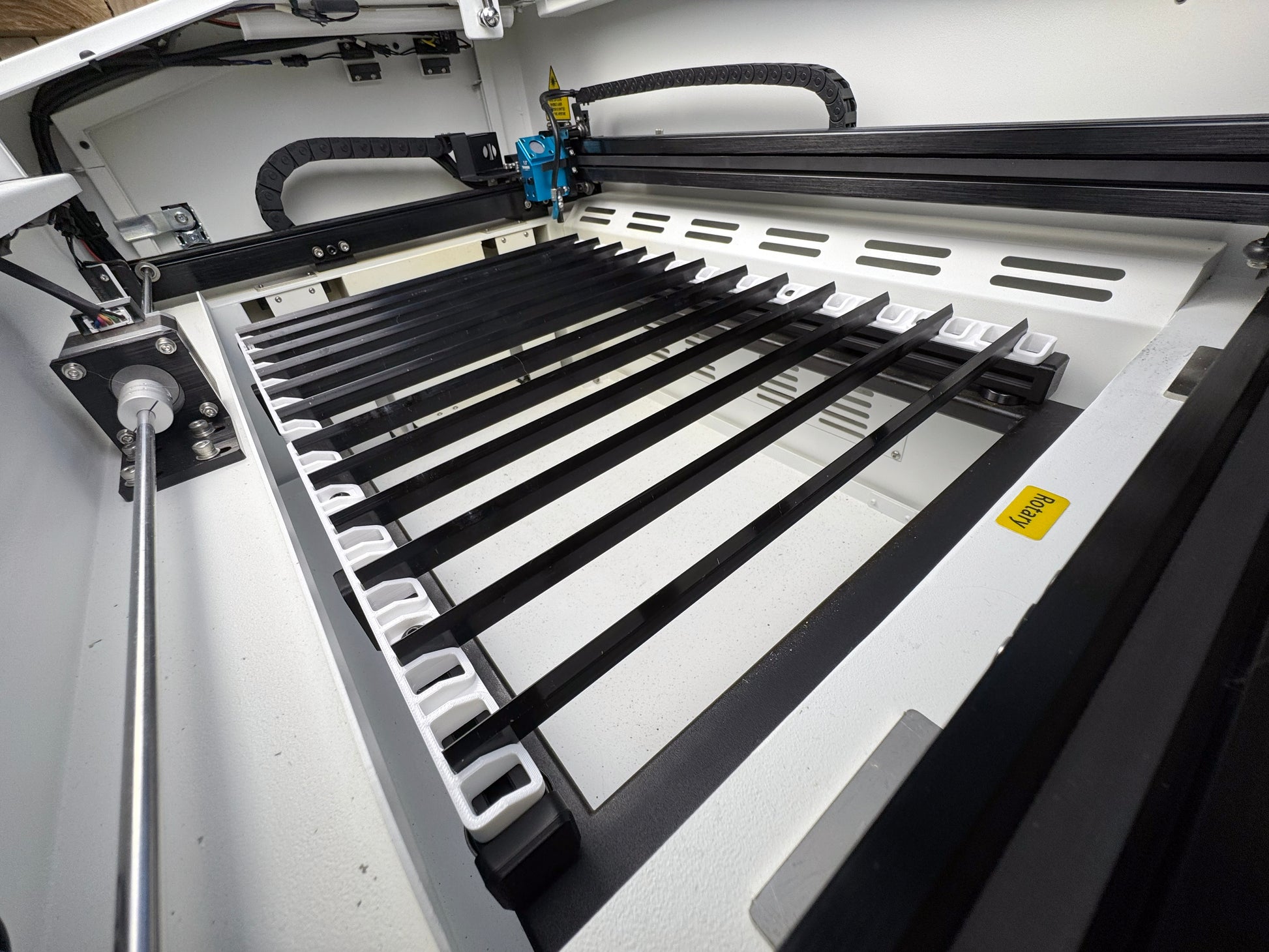

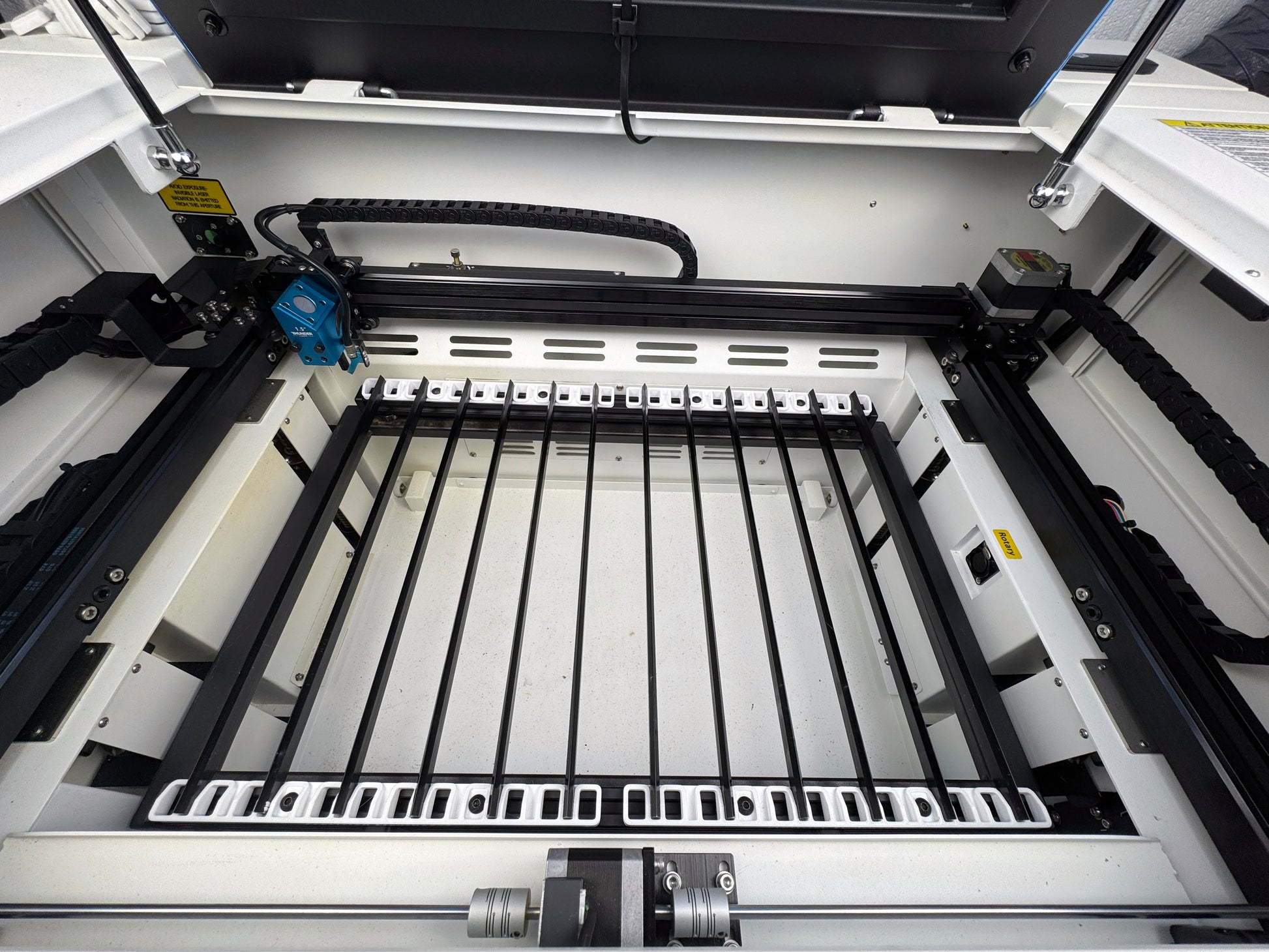

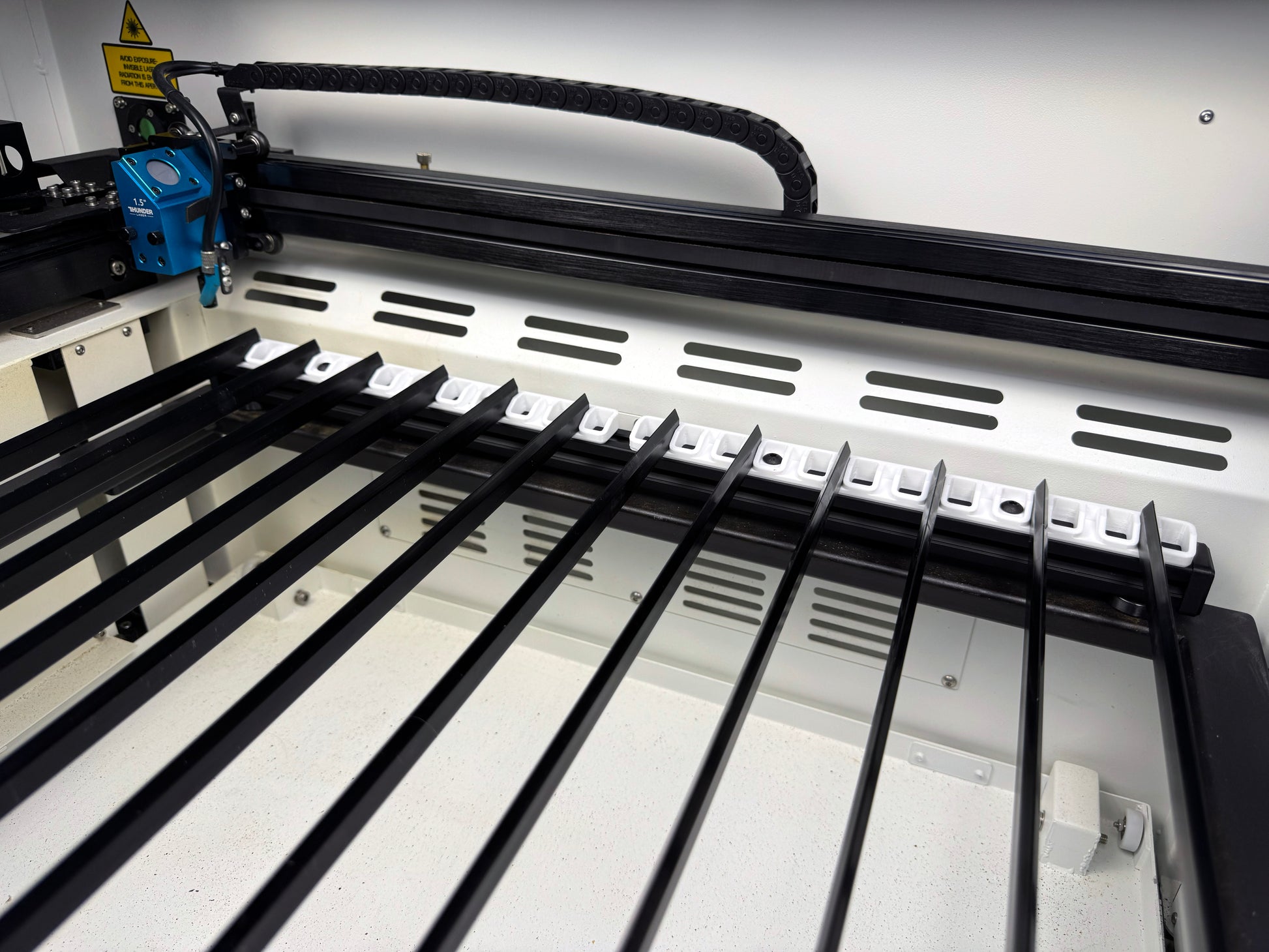

Designed for the Thunder Laser Bolt 12 x 20 platform. May be compatible with other laser engravers with similar bed dimensions. Fitment may vary depending on machine configuration.

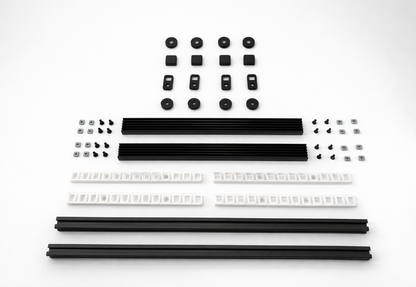

What’s Included

• Components for two complete blade holder assemblies
• Precision-cut blade supports
• Mounting hardware

Safety Note

Blades are sharp. Handle with care during assembly and use.
Magnets may pinch fingers if handled improperly.

Designed to deliver a cleaner, more consistent laser cutting experience.
